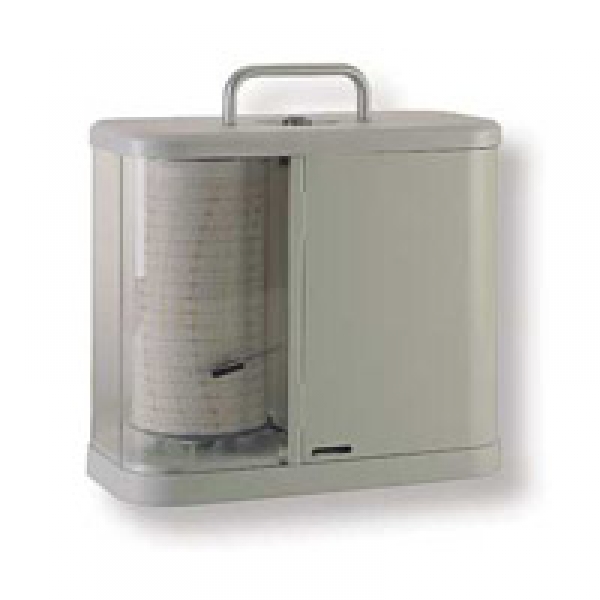

A precision measuring and recording instrument to determine the atmospheric pressure.
Elevation above the sea level can be set at the measuring site on a setting knob.
The recording is carried out by means of a hand wound clockwork drum mechanism acc. to DIN 8300 and DIN 58658.
| Order-No. |
| 3.0810.20.000 |
Recording time |
1 / 7 days, switchable |
| |
Thrust |
11,45 mm/h or 40 mm/Day |
| Measuring range |
965 ... 1050 hPa |
| Accuracy |
± 0,3 hPa |
| Recording width |
160 mm |
| Graduation |
1 hPa |
| Above sea level |
0 ... 2000 m, adjustable |
| Measuring element |
2 Aneroid-capsules, temperature-compensated |
| Ambient temperature |
-10 ... + 45 °C |
| Dimension |
280 x 138 x 285 mm |
| Weight |
3 kg |
|
Accessories
|
|
|
|
500847
|
Felt pen |
Colour violet |
|
205187
|
Recording charts (100 pcs.) |
7 days |
|
205188
|
|
1 day |
