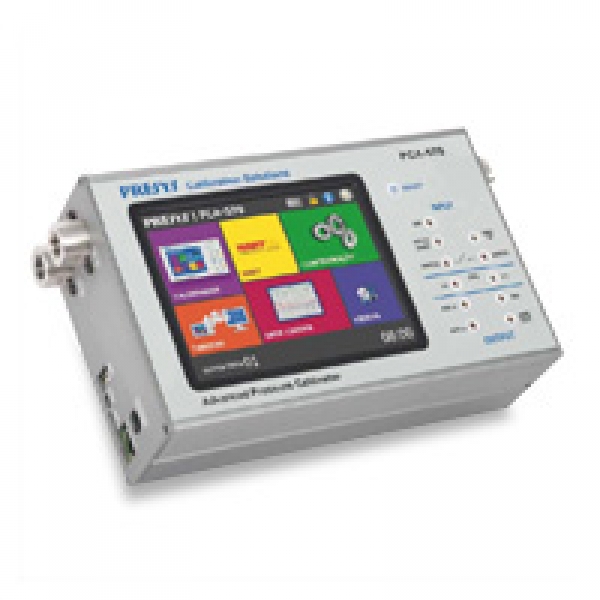

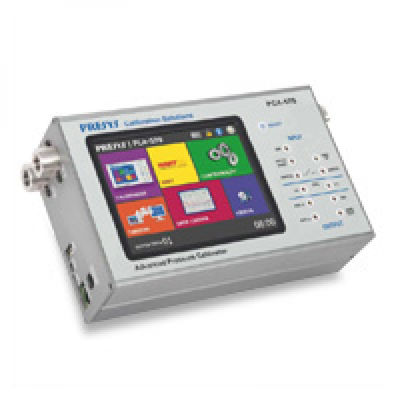

PCA-570

Up to four pressure sensors from 250 mmH O to 700 bar.
Optional Barometric Reference.
Support of External Pressure Modules
up to 4000bar
Touch Screen display provides easy-to-read data and mshows 2 simultaneous variables.
Intuitive navigation menu helps in identifying calibrator information for any operational mode.
Optional Barometric Reference for indication of absolute pressure.
Display input and output simultaneously.
Help menu showing how to make the connections.
Contact input for pressure switch calibration.
Full Hart configurator (optional), which configures all available HART® devices, with DD library from FieldComm Group.
24 Vdc power supply for 2-wire transmitters, 250 W internal resistor configurable.
Data Logger function for data acquisition and graphical visualization.
Ethernet, Wi-Fi, Pen drive, Hart, USB connection Host / Device.
Automated calibrations and generation of calibration report on direct connected USB printer or generation of PDF file.
