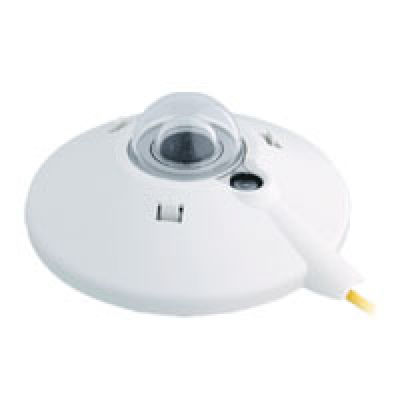

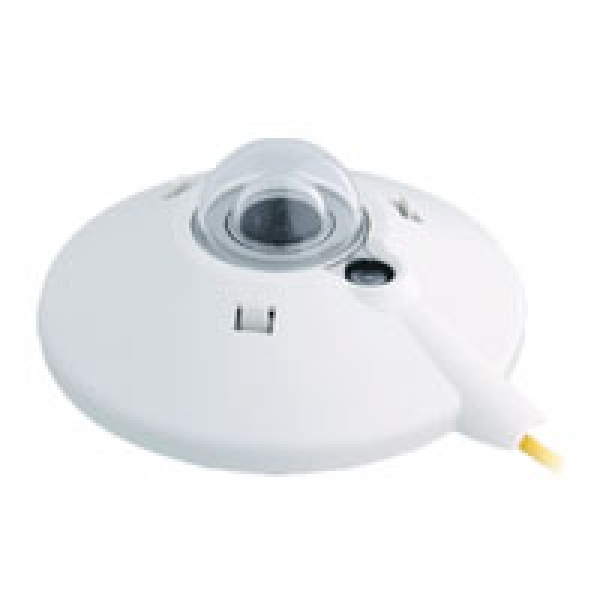

Measured value transmitter to determine global radiation. It is also used as Albedometer.
Easy to adjust horizontally owing to its adjustable feet and a level.
The instrument is "first class" according to WMO and ISO 9060.
Delivery includes calibration certificate.
| Order Code | |
|---|
| 7.1415.02.002 |
Measuring range |
0 - 2000 W/m² |
| |
Sensitivity |
5 -20 µV/W/m² |
| Spectral range |
0,31 - 2,8 µm |
| Non-linearity |
1 % (0 - 1000 W/m²) |
| Internal resistance |
20 - 200 Ohm |
| Time constant |
18s |
| Sensor type |
64 Thermocouples |
| Ambient temp. |
- 40 - + 80°C |
| Cable |
10 m long |
| Dimensions |
Ø 150 x 92 mm |
| Weight |
0,85 kg |
