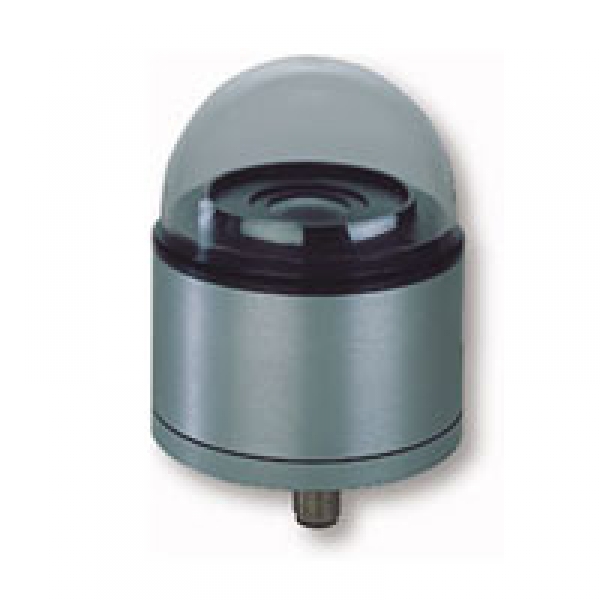

With the PAR-sensor the photochemical growth processes of outdoor- and greenhouse-plants can be optimized.
The sensitivity corresponds to the optimal degree of effect of chlorophyll.
The measuring results make it possible to assess reliably the developmental conditions of the plants.
Delivery includes calibration certificate.
| Order No. |
|
|
|
7.1418.00.040
|
Electrical output |
0 - 20 mA |
|
.041
|
4 - 20 mA |
|
.051
|
0 - 5 V |
|
.061
|
0 - 10 V |
| |
Measuring range |
0 - 500 W/m² |
| Spectral range |
0,38 - 0,7 µm |
| Switch on time |
< 1 s |
| Switch off time |
< 12 s |
| Cos -Correction |
error f2 < 3% |
| Linearity |
< 1 % |
| Abs. error |
< 10 % |
| Temperat. range. |
- 30 °C - + 60 °C |
| Operating voltage |
10 V - 24V DC |
| for output 10 V |
14 V - 24V DC |
| Cable |
5 m long |
| Dimensions |
Ø 80 x 95 mm |
| Weight |
0,3 kg |
