TERMOCAMERE SERIE SP
Altissime prestazioni e massima flessibilità
| Modello |  SP40 |
 SP40H |
 SP60 |
 SP60H |
 SP120H |
 SP100H |
|---|---|---|---|---|---|---|
| Infrared Image | ||||||
| IR Resolution | 480 × 360 (172,800 pixels) | 480 × 360 (172,800 pixels) | 640 × 480 (307,200 pixels) | 640 × 480 (307,200 pixels) | 1280 × 1024 (1,310,720 pixels) | 1040 × 832 (865,280 pixels) |
| NETD | < 30 mK (@ 30 °C, F#=1.0) | < 30 mK (@ 30 °C, F#=1.0) | < 30 mK (@ 30 °C, F#=1.0) | < 30 mK (@ 30 °C, F#=1.0) | ＜20 mK (@ 30 °C, F#=1.0) | ＜20 mK (@ 30 °C, F#=1.0) |
| Image Frequency | 30 Hz | 30 Hz | 30 Hz | 30 Hz | 30 Hz | 30 Hz |
| Detector Pitch | 17 μm | 17 μm | 17 μm | 17 μm | 12 μm | 12 μm |
| Spectral Range | 7.5 to 14 μm | 7.5 to 14 μm | 7.5 to 14 μm | 7.5 to 14 μm | 7.5 to 14 μm | 7.5 to 14 μm |
| Focal Length | L6: 77.4 mm; L9: 51.4 mm; L19: 25.6 mm; L37: 12.6 mm | L6: 77.4 mm; L9: 51.4 mm; L19: 25.6 mm; L37: 12.6 mm | L8: 77.4 mm; L12: 51.4 mm; L25: 25.6 mm; L50: 12.6 mm | L8: 77.4 mm; L12: 51.4 mm; L25: 25.6 mm; L50: 12.6 mm | L8: 112.2 mm; L12: 72.9 mm; L25: 35 mm; L50: 17.6 mm | L8: 112.2 mm; L12: 72.9 mm; L25: 35 mm; L50: 17.6 mm |
| F-number | L6: F1.2; L9: F1.1; L19: F1.0; L37: F1.0 | L6: F1.2; L9: F1.1; L19: F1.0; L37: F1.0 | L8: F1.2; L12: F1.1; L25: F1.0; L50: F1.0 | L8: F1.2; L12: F1.1; L25: F1.0; L50: F1.0 | L8: F1.3; L12: F1.2; L25: F1.1; L50: F1.1 | L8: F1.3; L12: F1.2; L25: F1.1; L50: F1.1 |
| Field of View (FOV) | L6: 6° × 4.5°; L9: 9° × 6.8°; L19: 18.7° × 14°; L37: 37.3° × 27.8° | L6: 6° × 4.5°; L9: 9° × 6.8°; L19: 18.7° × 14°; L37: 37.3° × 27.8° | L8: 8° × 6°; L12: 12° × 9°; L25: 24.8° × 18.7°; L50: 50° × 37.3° | L8: 8° × 6°; L12: 12° × 9°; L25: 24.8° × 18.7°; L50: 50° × 37.3° | L8: 7.9° × 6.3°; L12: 12° × 9.6°; L25: 25° × 20°; L50: 50° × 40° | L8: 7.9° × 6.3°; L12: 12° × 9.6°; L25: 25° × 20°; L50: 50° × 40° |
| Spatial Resolution (IFOV) | L6: 0.22 mrad; L9: 0.33 mrad; L19: 0.66 mrad; L37: 1.35 mrad | L6: 0.22 mrad; L9: 0.33 mrad; L19: 0.66 mrad; L37: 1.35 mrad | L8: 0.22 mrad; L12: 0.33 mrad; L25: 0.66 mrad; L50: 1.35 mrad | L8: 0.22 mrad; L12: 0.33 mrad; L25: 0.66 mrad; L50: 1.35 mrad | L8: 0.11 mrad; L12: 0.17 mrad; L25: 0.34 mrad; L50: 0.68 mrad | L8: 0.13 mrad; L12: 0. 20 mrad; L25: 0.42 mrad; L50: 0.84 mrad |
| Focus Mode | Laser Assisted AF/Continuous AF/AF/Manual Focus/Touch AF | Laser Assisted AF/Continuous AF/AF/Manual Focus/Touch AF | Laser Assisted AF/Continuous AF/AF/Manual Focus/Touch AF | Laser Assisted AF/Continuous AF/AF/Manual Focus/Touch AF | Laser Assisted AF/Continuous AF/AF/Manual Focus/Touch AF | Laser Assisted AF/Continuous AF/AF/Manual Focus/Touch AF |
| Focus Speed | Approx. 1 second | Approx. 1 second | Approx. 1 second | Approx. 1 second | 2560 × 2048 (5,242,880 pixels) | 2080 × 1664 (3,461,120 pixels) |
| SuperIR | 960 x 720 (691,200 pixels) | 960 x 720 (691,200 pixels) | 1280 x 960 (1,228,800 pixels) | 1280 x 960 (1,228,800 pixels) | L8: 5m (16.4 ft); L12: 1.65m (5.41 ft); L25: 0.3m (0.98 ft); L50: 0.2m (0.66 ft) | L8: 5m (16.4 ft); L12: 1.65m (5.41 ft); L25: 0.3m (0.98 ft); L50: 0.2m (0.66 ft) |
| Min. Focus Distance | L6: 2 m (6.56 ft); L9: 1 m (3.3 ft); L19: 0.15 m (0.49 ft); L37: 0.15 m (0.49 ft) | L6: 2 m (6.56 ft); L9: 1 m (3.3 ft); L19: 0.15 m (0.49 ft); L37: 0.15 m (0.49 ft) | L8: 2 m (6.56 ft); L12: 1 m (3.3 ft); L25: 0.15 m (0.49 ft); L50: 0.15 m (0.49 ft) | L8: 2 m (6.56 ft); L12: 1 m (3.3 ft); L25: 0.15 m (0.49 ft); L50: 0.15 m (0.49 ft) | 4096 × 3036 (13 MP） | 4096 × 3036 (13 MP） |
| Image Display | ||||||
| Visual Camera | 3264 × 2448 (8 MP) | 3264 × 2448 (8 MP) | 3264 × 2448 (8 MP) | 3264 × 2448 (8 MP) | 1920 × 1080 Resolution, 5.1” OLED Touch Screen, Lv 360 Cd/m^2 | 1920 × 1080 Resolution, 5.1” OLED Touch Screen, Lv 360 Cd/m^2 |
| Display | 1280 × 720 Resolution, 5” LCD Touch Screen | 1280 × 720 Resolution, 5” LCD Touch Screen | 1280 × 720 Resolution, 5” LCD Touch Screen | 1280 × 720 Resolution, 5” LCD Touch Screen | Manual/Auto | Manual/Auto |
| Screen Brightness | Manual/Auto | Manual/Auto | Manual/Auto | Manual/Auto | 1024 × 768 pixels OLED | 1024 × 768 pixels OLED |
| Viewfinder | No | No | 1024 × 768 pixels OLED | 1024 × 768 pixels OLED | 1.x to 12.x continuous | 1.x to 12.x continuous |
| Digital Zoom | 1.x to 12.x continuous | 1.x to 12.x continuous | 1.x to 12.x continuous | 1.x to 12.x continuous | Thermal/Visual/Fusion/PIP/Blending | Thermal/Visual/Fusion/PIP/Blending |
| Image Modes | Thermal/Visual/Fusion/PIP/Blending | Thermal/Visual/Fusion/PIP/Blending | Thermal/Visual/Fusion/PIP/Blending | Thermal/Visual/Fusion/PIP/Blending | White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red | White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red |
| Color Palettes | White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red | White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red | White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red | White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain, Blue Red | Above/Below/Interval | Above/Below/Interval |
| Focus Mode Palette | Above/Below/Interval | Above/Below/Interval | Above/Below/Interval | Above/Below/Interval | Above/Below/Interval/Insulation/Condensation | Above/Below/Interval/Insulation/Condensation |
| Color Alarm | Above/Below/Interval/Insulation/Condensation | Above/Below/Interval/Insulation/Condensation | Above/Below/Interval/Insulation/Condensation | Above/Below/Interval/Insulation/Condensation | Range 1: -40~150℃ | Range 1: -40~150℃ |
| Measurement and Analysis | ||||||
| Object Temperature Range | Range 1: -20℃ to 150℃ (-40°F to 302°F); Range 2: 0℃ to 650℃ (212°F to 1202°F) | Range 1: -40℃ to 150℃ (-40°F to 302°F); Range 2: 0℃ to 650℃ (212°F to 1202°F); Range 3: 300℃ to 2200℃ (572°F to 3992°F) | Range 1: -20℃ to 150℃ (-40°F to 302°F); Range 2: 0℃ to 650℃ (212°F to 1202°F) | Range 1: -40℃ to 150℃ (-40°F to 302°F); Range 2: 0℃ to 650℃ (212°F to 1202°F); Range 3: 300℃ to 2200℃ (572°F to 3992°F) | Range 1: -40~150℃ Range 2: 0~650℃ Range 3: 300~2200℃ | Range 1: -40~150℃ Range 2: 0~650℃ Range 3: 300~2200℃ |
| Accuracy | Range 1: ±2℃ for -20 to 0℃, ±1℃ for 0 to 100℃, ±1% for 100 to 150°C; Range 2: ±2℃ for 0 to 100℃, ±2% for 100 to 650°C | Range 1: ±2℃ for -40 to 0℃, ±1℃ for 0 to 100℃, ±1% for 100 to 150°C; Range 2: ±2℃ for 0 to 100℃, ±2% for 100 to 650°C; Range 3: ±2% for 300 to 2200°C | Range 1: ±2℃ for -20 to 0℃, ±1℃ for 0 to 100℃, ±1% for 100 to 150°C; Range 2: ±2℃ for 0 to 100℃, ±2% for 100 to 650°C | Range 1: ±2℃ for -40 to 0℃, ±1℃ for 0 to 100℃, ±1% for 100 to 150°C; Range 2: ±2℃ for 0 to 100℃, ±2% for 100 to 650°C; Range 3: ±2% for 300 to 2200°C | Range 1: ±2℃ for -40 to 0℃, ±1℃ for 0 to 100℃, ±1% for 100 to 150°C Range 2: ±2℃ for 0 to 100℃, ±2% for 100 to 650°C Range 3: ±2% for 300 to 2200°C | Range 1: ±2℃ for -40 to 0℃, ±1℃ for 0 to 100℃, ±1% for 100 to 150°C Range 2: ±2℃ for 0 to 100℃, ±2% for 100 to 650°C Range 3: ±2% for 300 to 2200°C |
| Measurement Tools | Center Spot, Hot Spot, Cold Spot. User-definable: Delta T, 10 spots, 1 line, 5 rectangles, and 5 circles | Center Spot, Hot Spot, Cold Spot. User-definable: Delta T, 10 spots, 1 line, 5 rectangles, and 5 circles | Center Spot, Hot Spot, Cold Spot. User-definable: Delta T, 10 spots, 1 line, 5 rectangles, and 5 circles | Center Spot, Hot Spot, Cold Spot. User-definable: Delta T, 10 spots, 1 line, 5 rectangles, and 5 circles | Center Spot, Hot Spot, Cold Spot. User-definable: Delta T, 10 spots, 1 line, 5 rectangles, and 5 circles | Center Spot, Hot Spot, Cold Spot. User-definable: Delta T, 10 spots, 1 line, 5 rectangles, and 5 circles |
| Level and Span Mode | Auto/Manual/1-Tap Touch-Screen | Auto/Manual/1-Tap Touch-Screen | Auto/Manual/1-Tap Touch-Screen | Auto/Manual/1-Tap Touch-Screen | Auto/Manual/1-Tap Touch-Screen | Auto/Manual/1-Tap Touch-Screen |
| Inspection Route | Yes | Yes | Yes | Yes | Yes | Yes |
| SuperScene+ | Electrical Panel, PCB Inspection | Electrical Panel, PCB Inspection | Electrical Panel, PCB Inspection | Electrical Panel, PCB Inspection | Electrical Panel, PCB Inspection | Electrical Panel, PCB Inspection |
| Data Storage and Communication | ||||||
| Image Storage Capacity | Approx. 130,000 Images (8MP) | Approx. 130,000 Images (8MP) | Approx. 130,000 Images (8MP) | Approx. 130,000 Images (8MP) | Approx. 45,000 Images | Approx. 50,000 Images |
| Annotations | Voice note: max. 60 seconds; Text note: max. 200 characters; QR Code note; Picture note; Tag note; Sketch | Voice note: max. 60 seconds; Text note: max. 200 characters; QR Code note; Picture note; Tag note; Sketch | Voice note: max. 60 seconds; Text note: max. 200 characters; QR Code note; Picture note; Tag note; Sketch | Voice note: max. 60 seconds; Text note: max. 200 characters; QR Code note; Picture note; Tag note; Sketch | Voice note: max. 60 seconds;Text note: max. 200 characters;QR Code note; Picture note; Tag note; Sketch | Voice note: max. 60 seconds;Text note: max. 200 characters;QR Code note; Picture note; Tag note; Sketch |
| Video Storage Capacity | MP4 video max. 420h; Radiometric video max. 72h | MP4 video max. 420h; Radiometric video max. 72h | MP4 video max. 500h; Radiometric video max. 38h | MP4 video max. 500h; Radiometric video max. 38h | MP4 video max. 100h; Radiometric video max. 9h | MP4 video max. 100h; Radiometric video max. 13h |
| Video File Format | MP4 video and radiometric video | MP4 video and radiometric video | MP4 video and radiometric video | MP4 video and radiometric video | MP4 video and radiometric video | MP4 video and radiometric video |
| Image Format | Radiometric JPEG | Radiometric JPEG | Radiometric JPEG | Radiometric JPEG | Radiometric JPEG | Radiometric JPEG |
| Radiometric Infrared-Video Streaming (Compressed) | Over UVC, Wi-Fi | Over UVC, Wi-Fi | Over UVC, Wi-Fi | Over UVC, Wi-Fi | Over UVC, Wi-Fi | Over UVC, Wi-Fi |
| Extendable Memory Card | Extendable 128 GB SD Card | Extendable 128 GB SD Card | Extendable 128 GB SD Card | Extendable 128 GB SD Card | Extendable 128 GB SD Card | Extendable 128 GB SD Card |
| General | ||||||
| Wi-Fi | 802.11 b/g/n (2.4 GHz and 5 GHz) | 802.11 b/g/n (2.4 GHz and 5 GHz) | 802.11 b/g/n (2.4 GHz and 5 GHz) | 802.11 b/g/n (2.4 GHz and 5 GHz) | 802.11 b/g/n (2.4 GHz and 5 GHz) | 802.11 b/g/n (2.4 GHz and 5 GHz) |
| Bluetooth | Bluetooth 4.2 | Bluetooth 4.2 | Bluetooth 4.2 | Bluetooth 4.2 | Bluetooth 4.2 | Bluetooth 4.2 |
| USB Interface | USB Type-C | USB Type-C | USB Type-C | USB Type-C | USB Type-C | USB Type-C |
| HDMI Interface | HDMI-D | HDMI-D | HDMI-D | HDMI-D | HDMI-D | HDMI-D |
| Laser Distance Meter | Indoor distance: 50 m (164 ft); Outdoor distance: 10 m (33 ft). | Indoor distance: 50 m (164 ft); Outdoor distance: 10 m (33 ft). | Indoor distance: 50 m (164 ft); Outdoor distance: 10 m (33 ft). | Indoor distance: 50 m (164 ft); Outdoor distance: 10 m (33 ft). | Indoor distance: 50 m (164 ft); Outdoor distance: 15 m (49 ft). | Indoor distance: 50 m (164 ft); Outdoor distance: 15 m (49 ft). |
| GPS & Compass | Yes | Yes | Yes | Yes | Yes | Yes |
| Battery Type | Interchangeable and rechargeable Li-ion battery | Interchangeable and rechargeable Li-ion battery | Interchangeable and rechargeable Li-ion battery | Interchangeable and rechargeable Li-ion battery | Interchangeable and rechargeable Li-ion battery | Interchangeable and rechargeable Li-ion battery |
| Battery Operating Time | Approx. 4 hours | Approx. 4 hours | Approx. 4 hours | Approx. 4 hours | Approx. 4 hours | Approx. 4 hours |
| Battery Charging Time | Approx. 2.5 hours fully charged | Approx. 2.5 hours fully charged | Approx. 2.5 hours fully charged | Approx. 2.5 hours fully charged | Approx. 2.5 hours fully charged | Approx. 2.5 hours fully charged |
| Power Saving Mode | Yes | Yes | Yes | Yes | Yes | Yes |
| Programmable Buttons | 2 | 2 | 2 | 2 | 2 | 2 |
| Protection Level | IP54, IEC 60529 | IP54, IEC 60529 | IP54, IEC 60529 | IP54, IEC 60529 | IP54, IEC 60529 | IP54, IEC 60529 |
| Drop Test Height | 1 m (3.28 ft), IEC 60068-2-31 | 1 m (3.28 ft), IEC 60068-2-31 | 1 m (3.28 ft), IEC 60068-2-31 | 1 m (3.28 ft), IEC 60068-2-31 | 1 m (3.28 ft), IEC 60068-2-31 | 1 m (3.28 ft), IEC 60068-2-31 |
| Safety | IEC 61010-1 | IEC 61010-1 | IEC 61010-1 | IEC 61010-1 | IEC 61010-1 | IEC 61010-1 |
| EMC | EN 301 489-1, EN 301 489-17, EN IEC 61000-6-2, EN IEC 61000-6-4, EN 61326-1 | EN 301 489-1, EN 301 489-17, EN IEC 61000-6-2, EN IEC 61000-6-4, EN 61326-1 | EN 301 489-1, EN 301 489-17, EN IEC 61000-6-2, EN IEC 61000-6-4, EN 61326-1 | EN 301 489-1, EN 301 489-17, EN IEC 61000-6-2, EN IEC 61000-6-4, EN 61326-1 | EN 301 489-1, EN 301 489-17, EN IEC 61000-6-2, EN IEC 61000-6-3, EN 61326-1 | EN 301 489-1, EN 301 489-17, EN IEC 61000-6-2, EN IEC 61000-6-3, EN 61326-1 |
| Vibration | 2 g, IEC 60068-2-6 | 2 g, IEC 60068-2-6 | 2 g, IEC 60068-2-6 | 2 g, IEC 60068-2-6 | 2 g, IEC 60068-2-6 | 2 g, IEC 60068-2-6 |
| Shock | 25 g, IEC 60068-2-27 | 25 g, IEC 60068-2-27 | 25 g, IEC 60068-2-27 | 25 g, IEC 60068-2-27 | 25 g, IEC 60068-2-27 | 25 g, IEC 60068-2-27 |
| Working Temperature Range | -20°C to 50°C ( -4°F to 122 °F) | -20°C to 50°C ( -4°F to 122 °F) | -20°C to 50°C ( -4°F to 122 °F) | -20°C to 50°C ( -4°F to 122 °F) | -20°C to 50°C ( -4°F to 122 °F) | -20°C to 50°C ( -4°F to 122 °F) |
| Storage Temperature Range | -20°C to 60°C ( -4°F to 140°F) | -20°C to 60°C ( -4°F to 140°F) | -20°C to 60°C ( -4°F to 140°F) | -20°C to 60°C ( -4°F to 140°F) | -20°C to 60°C ( -4°F to 140°F) | -20°C to 60°C ( -4°F to 140°F) |
| Relative Humidity | < 95% non-condensing | < 95% non-condensing | < 95% non-condensing | < 95% non-condensing | ＜95% non-condensing | ＜95% non-condensing |
| Weight | Approx. 1451 g (3.2 lb) | Approx. 1451 g (3.2 lb) | Approx. 1481 g (3.27 lb) | Approx. 1481 g (3.27 lb) | Approx. 1550 g (3.42 lb)（Without lens）Approx. 1700 g (3.74 lb)（With L25 lens ） | Approx. 1550 g (3.42 lb)（Without lens）Approx. 1700 g (3.74 lb)（With L25 lens ） |
| Dimension | 210.1 × 141.03 × 87.8 mm (8.27 × 5.55 × 3.45 in) | 210.1 × 141.03 × 87.8 mm (8.27 × 5.55 × 3.45 in) | 204.7 × 153.6 × 87.8 mm (8.06 × 6.05 × 3.45 in) | 210.1 × 151.9 × 87.8 mm (8.27 × 5.98 × 3.45 in) | 220.5 × 151.9 × 88.1 mm (8.68 × 5.98 × 3.47 in)（Without lens） | 220.5 × 151.9 × 88.1 mm (8.68 × 5.98 × 3.47 in)（Without lens） |
| Tripod Mounting | UNC ¼”-20 | UNC ¼”-20 | UNC ¼”-20 | UNC ¼”-20 | UNC ¼”-20 | UNC ¼”-20 |
| Laser Pointer | Yes | Yes | Yes | Yes | Yes | Yes |
| Warranty | 3 years for the full product, 10 years for the detector, and 2 years for the battery. | 3 years for the full product, 10 years for the detector, and 2 years for the battery. | 3 years for the full product, 10 years for the detector, and 2 years for the battery. | 3 years for the full product, 10 years for the detector, and 2 years for the battery. | 3 years for the full product, 10 years for the detector, and 2 years for the battery. | 3 years for the full product, 10 years for the detector, and 2 years for the battery. |
| Laser | Yes, Class II, Wavelength: 635 nm; Power: < 1 mW | Yes, Class II, Wavelength: 635 nm; Power: < 1 mW | Yes, Class II, Wavelength: 635 nm; Power: < 1 mW | Yes, Class II, Wavelength: 635 nm; Power: < 1 mW | Yes, Class II, Wavelength: 635 nm; Power: < 1 mW | Yes, Class II, Wavelength: 635 nm; Power: < 1 mW |
| LED Light | Yes | Yes | Yes | Yes | Yes | Yes |
Che tu debba scegliere uno strumento, verificare la correttezza di una misura, richiedere una taratura o ricevere assistenza, il nostro team è a tua disposizione per individuare la soluzione più adatta.
Parla con un espertoIl nostro valore è l’esperienza e la consulenza che da oltre quarant’anni offriamo gratuitamente ad i nostri clienti e la capacità di uscire con il miglior rapporto prezzo/qualità possibile.
Premi il pulsante per richiedere il miglio prezzo che potrai trovare per i prodotti HIKMICRO
Grazie al SuperlR, la tecnologia di miglioramento delle immagini HIKMICRO, le immagini vengono ingrandite di 4 volte per fornire immagini radiometriche in tempo reale e registrate altamente dettagliate per le ispezioni e i rapporti.
Supporto di 5 modalità di messa a fuoco (AF assistita da laser, AF continua, AF, messa a fuoco manuale, Tocca AF) con una velocità di messa a fuoco di 1 secondo per adattarsi al flusso di lavoro, ottimizzare la nitidezza dell’immagine e garantire la precisione della misurazione

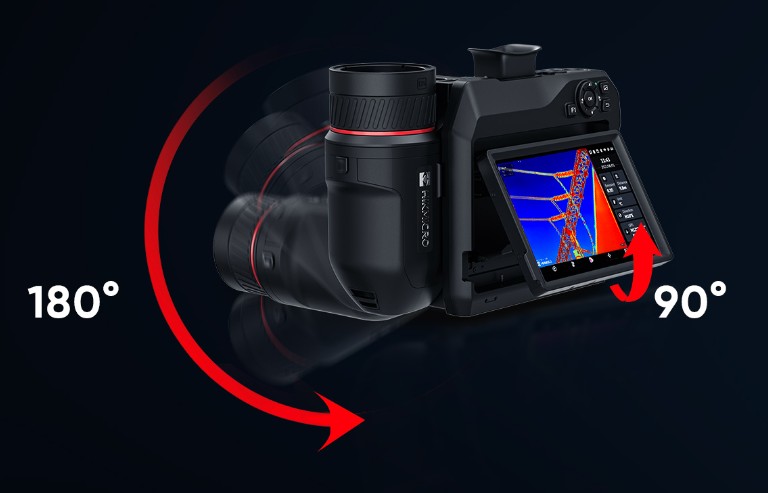

Lo schermo rotante a 90° e il design dell’obiettivo rotante a 180° aiutano a visualizzare facilmente l’area intorno, tra, sopra o sotto il bersaglio. Mantenere una distanza di sicurezza consente le ispezioni altrettanto flessibili.
Resistente all’acqua e alla polvere secondo gli standard IP54 e testato per cadute da un’altezza di 1 m.
Mirino elettronico OLED 1024 x 768 e auto-regolazione della luminosità, risoluzione 1920 × 1080 e touchscreen OLED da 5,1 pollici.
Consente ispezioni esterne facili in condizioni di luce intensa e sfide difficili. (*Solo SP120H)

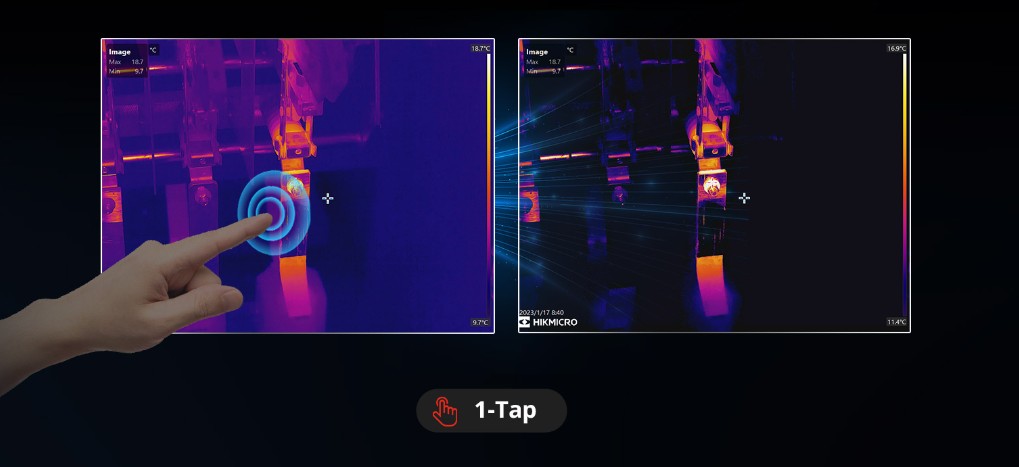

Supporta 3 modalità di livello/ampiezza (manuale, automatica e 1-Tap) per migliorare istantaneamente il contrasto dell’immagine ed evidenziare potenziali problemi.
L’SP60/60H include un mirino OLED da 1024×768 per individuare gli oggetti a distanze maggiori ed eliminare i riflessi del sole.

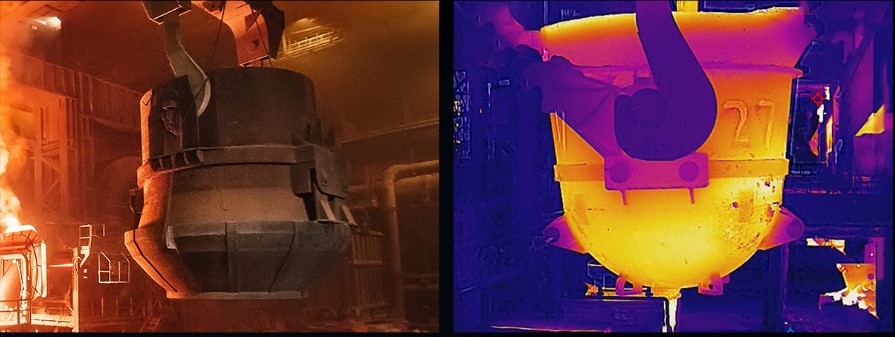

Con un intervallo di misurazione fino a 2200°C (3992°F), è in grado di gestire applicazioni per forni industriali, refrattari e strumenti/dispositivi di ispezione nella fusione dei metalli alle temperature estreme menzionate. (*Solo SP40H/SP60H/SP120H)

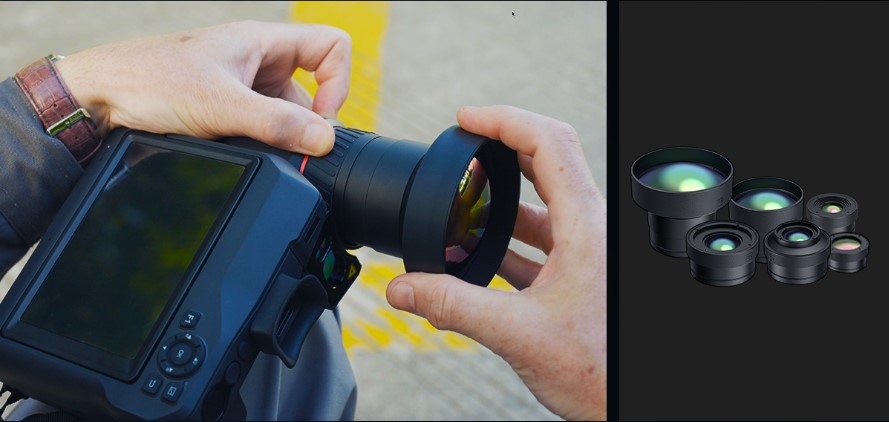

Le lenti intercambiabili consentono di scegliere il campo visivo per le ispezioni. I diversi lenti hanno campi visivi diversi, offrendo più opzioni per diversi scenari, per vedere e catturare immagini più dettagliate e per misurare con maggiore precisione i piccoli problemi.

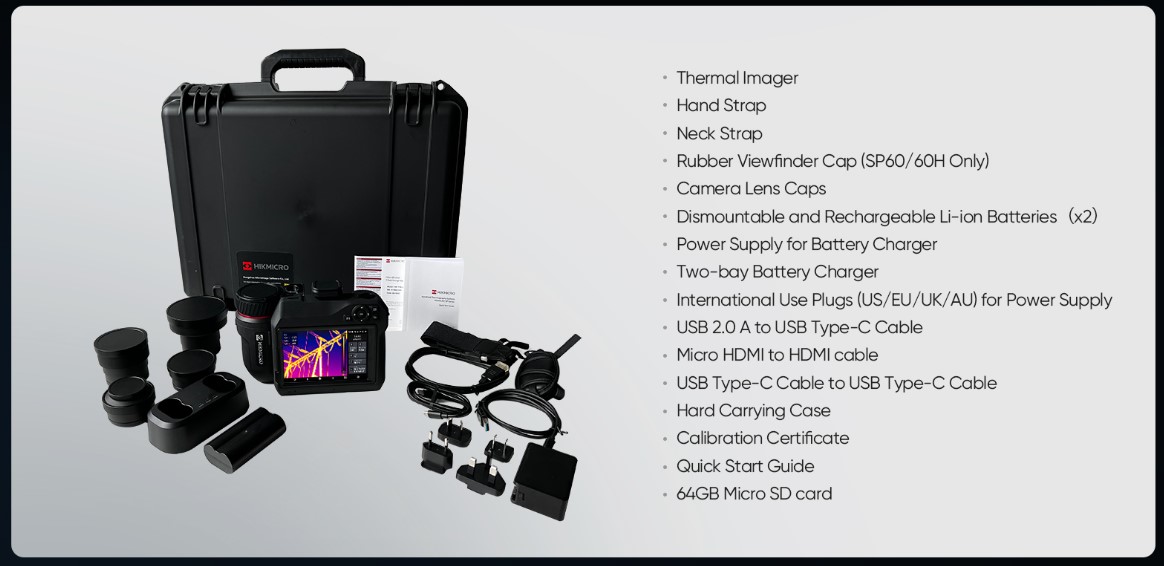

Include 2 batterie intercambiabili Li-ion e un caricabatterie a doppia baia per garantire fino a 8 ore di funzionamento.
Puoi rimanere operativo anche durante lunghe ispezioni.

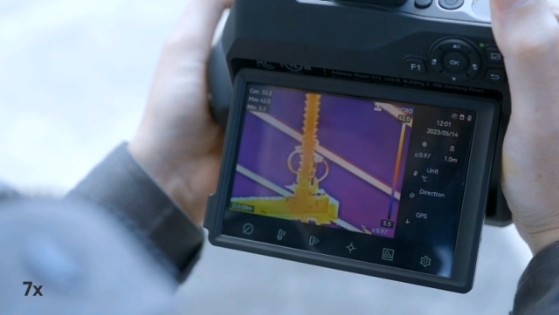

1.0x to 12.0x continuous digital zoom provides more image details.

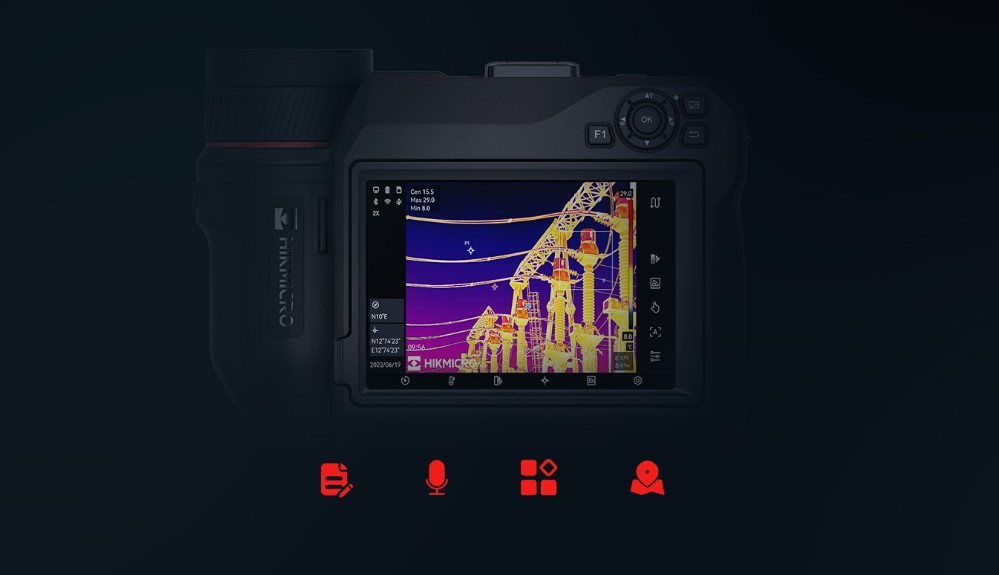

Annotare rapidamente le immagini con voce, testo o codici QR. Aggiungere la direzione del GPS e della bussola alle immagini esterne per includere i dati di geolocalizzazione.
L’intera serie SP è costruita per resistere all’acqua e alla polvere secondo gli standard IP54 ed è testata per la caduta da un metro.
Il suo touchscreen da 5″ 1280×720 si adatta dinamicamente alle condizioni di luce circostante e visualizza dettagli vividi e chiari anche alla luce diretta del sole.
Un distanziometro laser integrato consente di misurare con precisione la distanza e l’area da grandi distanze, con una maggiore comodità nell’impostazione dei parametri e nella generazione dei rapporti.
Siamo sempre all’avanguardia con le ultime tecnologie e ci formiamo continuamente per poterti offrire il prodotto giusto per le tue esigenze ed evidenziarti le caratteristiche che maggiormente potrebbero avere un impatto sul tuo lavoro.
Il nostro valore è l’esperienza e la consulenza che da oltre quarant’anni offriamo gratuitamente ad i nostri clienti e la capacità di uscire con il miglior rapporto prezzo/qualità possibile.

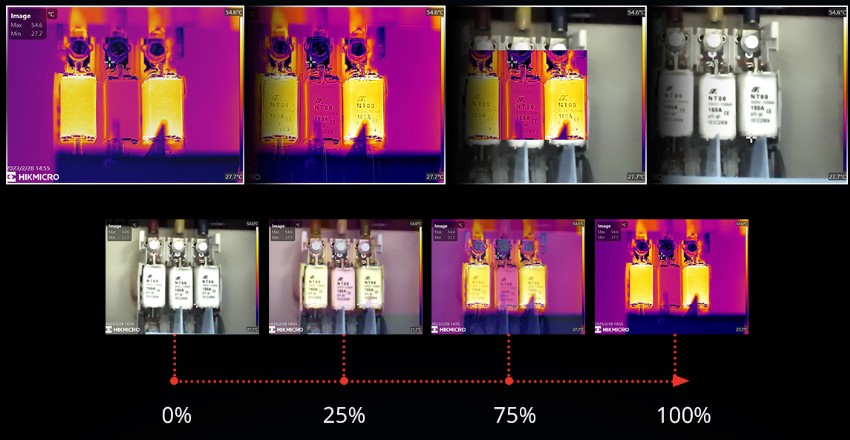

Modalità Termica, Fusione, PIP, Blending e Ottica per soddisfare le tue esigenze.
Include 2 batterie agli ioni di litio intercambiabili e un caricabatterie a doppio alloggiamento per fornire fino a 12 ore di funzionamento.
Puoi rimanere operativo anche durante lunghe ispezioni.

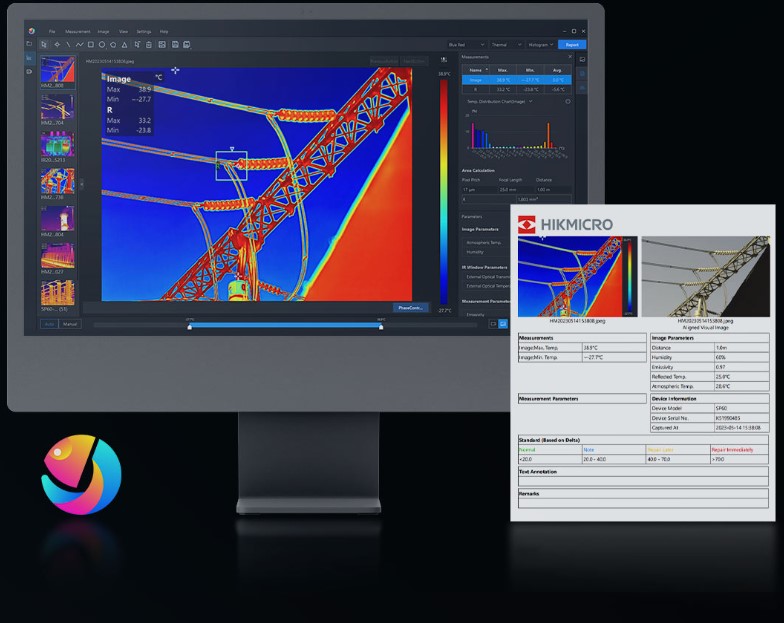

HIKMICRO Analyzer è un potente software per PC con licenza gratuita, progettato per aiutare gli utenti a gestire e analizzare migliaia di immagini e video termici e a creare rapidamente rapporti professionali. Compatibile con i file delle termocamere portatili HIKMICRO, Analyzer offre le funzioni necessarie per semplificare il flusso di lavoro e aumentare la produttività.
Collega l’app HIKMICRO Viewer tramite Wi-Fi per trasferire foto o video dalla fotocamera a un dispositivo mobile.
Analizza, condividi immagini e genera report in tempo reale direttamente sul posto.
